1. Elbow Double Lancet
2. Straight double Lancet
3. Single Edge Blade
4. Round Blade with Sharp Side
5. Double Edges Blade
6. Crescent Blade
7. Shovel Blade with Sharp sides
8. Trifacet Blade
9. Angle-Offset Blade with sharp sides
10. Trapezoid Double Lancet
11. Rhombus Blade



1. Elbow Double Lancet

B            A            D                C                L                Type Remark

2.8mm    45 deg     0.30 mm     3.38 mm     4.5 mm        C2845

2.8         60             0.30           2.42           4.5               C2860

3 45 0.30 3.62 4.5 C3045

3 60 0.30 2.60 4.5 C3060 (3)

3 70 0.30 2.14 4.5 C3070

3.2 45 0.3 3.86 4.5 C3245

3.2 60 0.3 2.77 4.5 C3260

Back to top
2. Straight double Lancet

B A D C L Type Remark

1 mm 35 deg 0.30 mm 1.58 mm 5 mm D1035 (2)

2 45 0.30 2.41 5 D2045


Back to top
3. Single Edge Blade

B A D C L Type Remark

1 mm 30 deg 0.20 mm 1.73 mm 5 mm A1030

1 45 0.20 1 5 A1045

2 30 0.24 3.46 5 A2030 (1)

2 45 0.24 2 5 A2045

3 45 0.30 3 6 A3045

3 30 0.30 5.20 6 A3030

Back to top

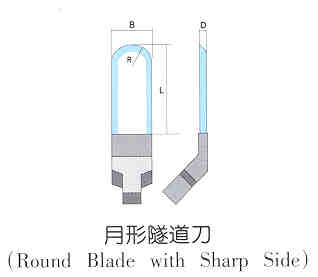

4. Round Blade with Sharp Side

B D L R Type Remark

1.5 mm 0.30 4.5 mm 0.75 mm E15

2 0.30 4.5 1 E20 (3)

2.8 0.30 4.5 1.4 E28

Back to top
5. Double Edges Blade

B A D C L Type Remark

1 mm 30 deg 0.20 mm 1.73 mm 5 mm B1030

2 30 0.24 mm 3.46 5 B2030

2 45 0.24 2 5 B2045 (2)

3 45 0.30 3 6 B3045

3 30 0.30 5.20 6 B3030

Back to top
6. Crescent Blade

B D R L Type Remark

3 mm 0.30 mm 3 mm 5 mm H30

5 0.30 5 5 H50

Back to top

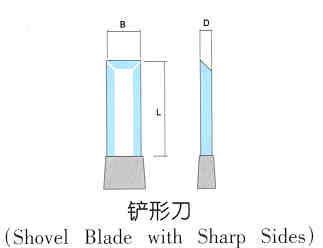

7. Shovel Blade with Sharp sides

B D L Type Remark

2 mm 0.30 mm 5 mm F20 (2)

Back to top
8. Trifacet Blade

B A A’ D L C F Type Remark

1 mm 30 deg 45 deg 0.20 mm 6 mm 0.21 mm 0.15 mm M10 (2)

Back to top

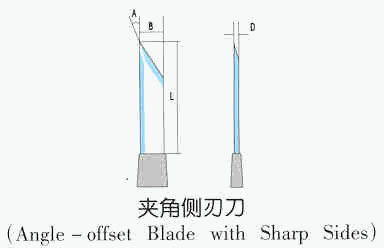

9. Angle-Offset Blade with sharp sides

B A D L Type Remark

2 mm 45 deg 0.30 mm 5 mm G20 (2)

Back to top
10. Trapezoid Double Lancet

B A A" D L C Type Remark

3.4 mm 80 deg 9 deg 0.30 mm 6 mm 4.5 mm K34 (2)

Back to top
11. Rhombus Blade

B A C L Type Remark

0.8 dia 30 deg 1.2 mm 5 mm J12 (2)



Remarks ;

1. General knife , not Retractable Holder ; stainless steel (S) or Titanium (T) Holder .
2. Straight Knife, external J-slot design Retractable Holder ; Stainless steel (S) or Titanium (T) Holder.
3. Elbow Knife , External J-slot design Retractable Holder ; Stainless steel (S) or Titanium (T) Holder .

Your Guarantee

Linetek provides the most comprehensive warranty in the industry, every sapphire Blade is precision cut, hand-honed and inspected 100x. Each Linetek sapphire knife must pass a rigorous numerous-step quality control inspection to ensure our customers of the utmost quality.
